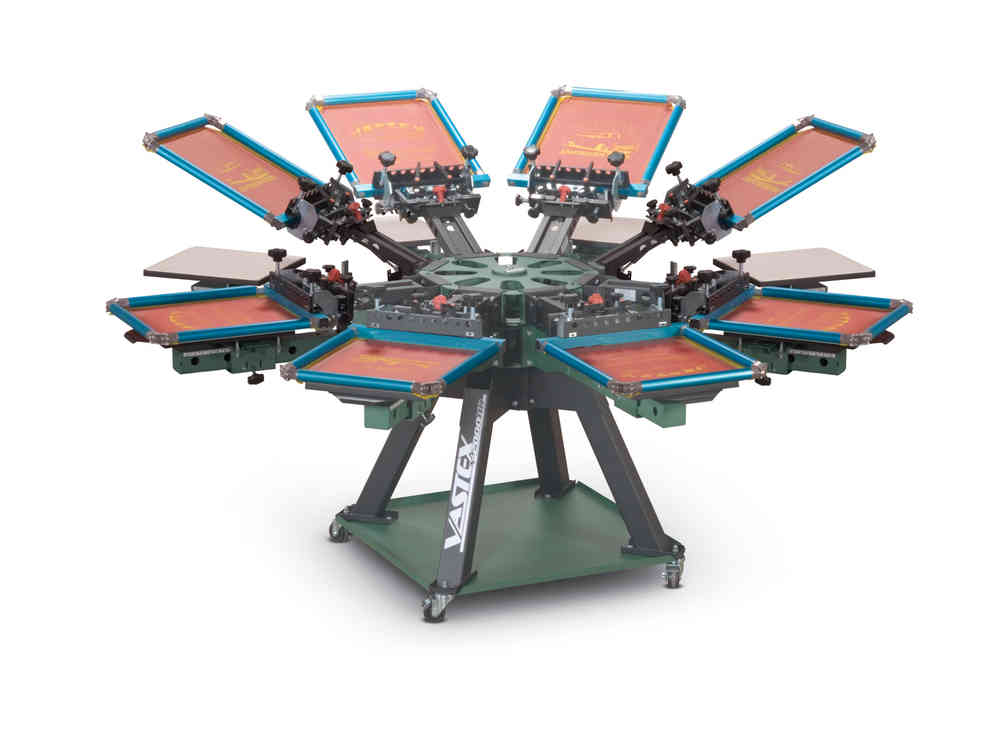

Vastex V2000 HD

(version: Modèle 8 palettes - 8 couleurs)
10,100.00
Price plus VAT, plus delivery
Delivery weight: 350 kg


Available shipping methods: Geodis, NetExpress Europe, Collection at our shop, Livraison par transporteur DACHSER

V-2000HD-logo



Screen Printing Machines Built to Last a Lifetime!



The Vastex V-2000HD printer line is the newest addition in a 40+ year history building screen printing equipment.

Vastex has the knowledge and experience to provide a printing system which is accurate, user friendly, affordable, and built to last... 25 year warranty!

RELIABLE:
25 Year Warranty* (*25 year limited warranty. Gas springs and rubber pallet tops covered for 3 years)



HEAVY DUTY
Never warp steel pallets with rubber tops and the new corner clamp pallet arm.



USER FRIENDLY
Micro-registration with wrench free controls and zero backlash.



ADJUSTABLE
6 ways screen leveling .



PRECISE
Holds accurate multicolor printing registration.



ACCURATE
Embedded registration bearings (close to the screen, stays clear of spray tack).



FLEXIBLE
Prints all heads down.



SMART
Gas lifters with 16 positions variable lift strength.



STRONG
12" (30 cm) wide steel rear screen clamps joined by a steel clamp bar for off center clamping 2.75" (6.9 cm) precision ground center shaft.



DURABLE
3" (7.6 cm) square steel rotor arm with ruler indicator.



INNOVATIVE
Elevated Pallets — no need to stretch shirts over the arm (also compatible with quick stretch jacket attachment).



EXCLUSIVE
Zero backlash bearings on screen arm pivot.



CONVENIENT
Adjustable micro clamp levers.



EXPANDABLE
Upgrade at any time from 1 station 1 color tabletop to 10 station 10 color rotary floor press!





Industry's fastest micro-registration slashes set-up time, boosting profit

Remember :

It's set-up time — not printing speed — that dictates your output and your profit, and no other press cuts

your set-up time as dramatically as a Vastex.

Radically different from competitive systems, the Vastex micro-registration print head adjustment is :

 1) spring loaded, 2) anti-backlash, 3) direct drive and 4) supported from an ultra-rigid frame. As a result, rotating the knob ¼ turn moves the print head precisely .015" (1/64"), with a ½ turn moving the print head precisely .031" (1/32") ... every time ... and always in a straight line, whether your press is brand new or 10 years old.

This extreme predictability, with zero slop or play, means you know — in advance — how much to rotate a knob to move the head into registration.

By contrast, virtually all competitive print heads use turnbuckles (without spring loading) to move the print head, with two negative results: First, as the machine wears, the amount of screen movement per rotation of the turnbuckle can vary, causing the operator to A) estimate how much to rotate the turnbuckle to align one of the colors B) make that movement and lock the head C) print another sample and find it did not move where expected, and D) discard that shirt or test square and try it again.

Worse, turnbuckles cause the head to pivot left-to-right in an arc, instead of moving in a straight line, adding to the difficulty of guessing where the head will move.

Multiply the extra time and rejects by the number of colors, and turnbuckles can waste 15 to 30 minutes every time you "Dial-in" a job — time you could be printing garments and making profits!

v2000head



sideclamp2                                          side_clamp



8" (20 cm) deep clamp
Replaces standard rear clamp head.

2 widths : 22" or 26" (56 or 66cm) max. wide screen.


3 depths: 8", 12" or 30" (20, 30 or 76 cm) deep clamps



Clamp-on Side Clamp Attachment


30" (76 cm) deep clamp
Great for printing player names.

2 widths: 22" or 26" (56 or 66 cm) max. wide screen.
3 depths: 8", 12" or 30" (20, 30 or 76 cm) deep clamps





Micro Registration:

  1. Movements are anti-backlash
    (never any play in micro threads)
  2. Linear movement left to right
  3. Large control knobs and locking clamps
  4. Wrench free

6 Way Leveling:

  1. Level heads shift left to right, front to back,
    and up and down with ease and control.

Hinge Pin:

  1. Solid pin spans entire hinge
  2. Anti-backlash bearings prevent any play

Rear Clamps:

  1. 1/4" Thick steel C-clamp design
  2. 1" Long steel threads (will not strip)
  3. 12" Clamp width
  4. Large knobs for firm grip

Registration Lock:

  1. Large ball bearings
  2. Embedded under print head, avoids spray tack
  3. Bearings glide over registration lock
    without possibility of wear (25 yr warranty)

Gas springs:

  1. Standard gas lifter avoids sudden breaks
  2. Additional lifters can be added for the
    industries strongest lift (over 75 lbs)
  3. 16 Spring positions provide variable lift and strength
  4. 3-Year warranty, economical to replace

Options:

  1. Side clamps, three lengths 8" 12" and 30"
  2. The industry's fastest numbering system






Additional product information

Specifications Download
operating manual Download

Product variations
Modèle 4 palettes - 4 couleurs
version: Modèle 4 palettes - 4 couleurs
5,560.00 € *
Modèle 4 palettes - 6 couleurs
version: Modèle 4 palettes - 6 couleurs
6,900.00 € *
Modèle 6 palettes - 6 couleurs
version: Modèle 6 palettes - 6 couleurs
7,890.00 € *
Modèle 8 palettes - 8 couleurs
version: Modèle 8 palettes - 8 couleurs
10,100.00 € *
Modèle 10 palettes - 10 couleurs
version: Modèle 10 palettes - 10 couleurs
12,700.00 € *
*
Prices plus VAT, plus delivery
